MinIO on XFS: Inode Exhaustion and Prefix Design for Lots of Small Files

TL;DR. MinIO does not keep a global object index in RAM. On directly attached drives it maps each S3 key onto a real XFS path and stores per-object metadata in xl.meta, written across every drive of the selected erasure set. On Lots of Small Files (LOSF), free TiB keeps looking healthy while free inodes and directory-walk cost collapse. This post covers three things I keep re-teaching on audits: how MinIO actually uses XFS, why inode exhaustion is a first-class capacity metric, and how to design S3 prefixes so leaf directories stay workable. It is a companion to MinIO and lots of small files and when erasure coding becomes 15× replication.

The failure mode you will misread as “storage is fine”

A typical LOSF shape on bare metal looks like this:

• most objects in the few-KiB to tens-of-KiB band (classic small business objects, features, events, document units),
• sustained ingest on the order of hundreds to a few thousand objects per second in the busy window,
• retention long enough that the active namespace can reach hundreds of millions to billions of logical keys,
• fixed drive count (no elastic multi-tenant S3 backend behind you).

Ops dashboards then show green capacity. df -h still has TiB free. PUTs start timing out. LIST of a hot prefix saturates one erasure set. The scanner that feeds heal selection and lifecycle work falls days behind. Notification spools fill by file count, not by bytes. You are not out of disk in the usual sense. You have run into the filesystem cost of “one small S3 object equals real metadata work on N drives”.

If you remember one framing: on a LOSF MinIO cluster you are buying inodes and metadata IOPS, not mostly disk bytes.

How MinIO uses XFS (the on-disk truth)

S3 presents a flat keyspace. MinIO, on local drives, does not. Each / in an object key becomes a real directory. Recommended practice is XFS on directly attached JBOD-style devices; that is the substrate MinIO’s guidance assumes for large deployments. XFS is not a MinIO database. It supplies directories, files, inodes, allocation, caching, and durability semantics. MinIO does the object layout and the erasure math on top.

S3 key → directories → xl.meta

Illustrative layout under one drive’s data path:

/data/minio/<bucket>/
└── aa/                        # prefix segment (real directory)
    └── bb/                    # deeper prefix segment
        └── object-id/         # per-object directory (leaf)
            └── xl.meta        # MessagePack metadata (+ inlined payload when small)

Facts that matter more than the picture:

• No global in-RAM object index for ordinary placement. Metadata lives on disk in xl.meta. Process RSS tracks concurrent work, not total object count. That is how MinIO escapes the classic HDFS NameNode heap ceiling. It does not mean metadata became free.
• Per erasure set, not once cluster-wide. MinIO hashes the full object name, picks one erasure set, and writes object material onto every drive of that set. Prefix hashing is not required merely to spread writes across sets; the set selection already uses the full key.
• Inlining of small shards. Current MinIO storage-class logic decides inlining from per-drive shard size, with a default inline_block on the order of 128 KiB (and a stricter effective threshold on versioned buckets). When inlined, payload lives inside xl.meta. A small PUT is still N filesystem create/write paths on an N-drive set, not one tiny file in a shared pool.
• Non-inlined objects add more files. A single-part object typically adds a UUID data directory and part.1 next to xl.meta. Multipart grows that further. Shared prefix directories, multipart upload staging, trash, notification spools, and .minio.sys all add inodes on top of the pure object model.
• Page cache is the soft metadata cache. It is shared with data, not guaranteed, and disappears under pressure. Treating page-cache growth as “wasted RAM” on a LOSF platform is a common miss-read.

Inode amplification (what one object costs)

Let O be distinct object keys, D total drives in the pool, N drives per erasure set, and S = D/N sets.

• For a typical inlined object: each selected-set drive holds the object directory plus xl.meta, about 2 inodes. Expected per-drive use is about 2 × O / S, equivalently 2 × O × N / D.
• For a typical non-inlined single-part object: add the data directory and part.1, about 4 inodes per selected-set drive.
• Parity does not reduce metadata copies. Parity changes usable capacity and fault tolerance. Set width N is what multiplies metadata. With fixed D, a larger N means fewer sets and more object metadata sitting on each drive.

Worked order of magnitude: 100 000 objects under one application prefix with N = 15 is not “100k tiny files”. Across the set you are looking at roughly 1.5 million filesystem entries for the inlined case alone (object dirs + xl.meta), plus parent prefixes. That is why small mean object size makes free-byte charts look safe for a long time.

Two different directory ceilings (files vs subdirs)

A single XFS directory holds different kinds of entries. Treat them separately in design:

• Object leaves (many object directories and their xl.meta under one final prefix): keep well under a house target of about 10 000 objects per leaf. Past that, readdir, ListObjects*, concurrent PUT/LIST, and scanner leaf walks get expensive. Severe pain often shows well before a theoretical “maximum”.
• Prefix fan-out (many child directories under one parent): MinIO’s scanner documents an excess subfolders guardrail. Public docs describe an alert past about 50 000 subfolders under a prefix, with higher error and skip thresholds beyond that. That is a scanner operational limit, not “XFS cannot store more entries”.

Design rule that holds up in the field: internal nodes hold only subdirectories; leaves hold only objects. Do not dump a huge flat object pile and a huge child-prefix fan-out into the same directory.

XFS internally progresses through short-form, block, leaf, and node directory formats; large directories end up as B+trees. Point lookup can stay decent. A full readdir still scales with entry count and the metadata working set. Transitions depend on block size, name length, and layout, so I do not publish a single universal “at 200 000 entries Y happens” number. Benchmark your leaf sizes. Use the MinIO scanner thresholds for hierarchy depth decisions.

Inode exhaustion: mechanics and field signals

Why free space lies

On LOSF with inlining, average useful payload may be a few kilobytes while each logical object still creates multiple inodes and several small writes on the selected set. Free bytes stay comfortable while free inodes collapse.

XFS allocates inodes dynamically. Dynamic is not unlimited. mkfs.xfs‘s maxpct caps the percentage of the filesystem that may be spent on inode blocks (documented defaults step down as the volume grows: on the order of 25% below 1 TiB, 5% below 50 TiB, 1% above 50 TiB). You can raise it later with xfs_growfs -m, at the cost of data capacity headroom. XFS can also report out of space while free blocks remain if fragmentation leaves no suitable extent for another inode chunk; sparse-inode support mitigates this, it does not remove the capacity planning problem. Quotas and allocation-group locality can bite separately.

Default mkfs inode density is sized around ordinary byte-capacity workloads. For “one inode per a few hundred bytes of average logical object after EC amplification”, you must plan inode count explicitly.

Amplifiers that look optional and are not free

• Erasure set width N – roughly linear metadata multiplication per object.
• Versioning (often forced by site replication) – versions share the object directory and the same xl.meta. Inline versions and delete markers are records inside that file; they do not each create a fresh xl.meta inode. Non-inline versions usually add data directories and parts. Still, versioning grows xl.meta, scanner work, and often delete-marker clutter. Measure versions per object. Do not assume 1.0 forever. Unbounded noncurrent cleanup debt has shown up as sudden compaction-class surprises, not as a steady linear tax only.
• Local notification spools – store-and-forward on disk can be another LOSF tree. Watch space and inodes on that mount.
• Unbounded batch extract / snowball-style fan-out – one API call creating 10²-10⁶ objects is normal on elastic multi-tenant cloud S3 and brutal on a fixed 60-drive cluster.
• Flat or sequential keys – silent creation of monster leaf directories.

What pressure looks like operationally

• df -i on every data mount trending down while df -h is still green,
• create / PUT failures or latency cliffs with “no space” class errors despite free bytes,
• ls/find on hot data paths becoming operationally dangerous,
• notification spool directories dirty on file count,
• heal, ILM, and replication retry looking “stuck” because they share the same walk physics,
• object count rising much faster than used bytes (mean object size collapse = LOSF signature).

Treat inode ENOSPC as a distinct failure class from byte-capacity exhaustion. Raising maxpct is mitigation and headroom trade, not a substitute for controlling object creation rate.

Why background work turns LOSF into a durability problem

MinIO background progress is largely scanner-driven: data-usage stats, bitrot sampling and heal selection, lifecycle enqueue, and some replay paths for replication failure tails. There is no separate ILM engine that enjoys a free O(1) index of “everything that expires tomorrow”.

On a healthy medium-object cluster, a full pass is background noise. On LOSF blueprints, full coverage drifts from hours toward days or weeks once you sit in the tens or hundreds of millions of objects. Then you get silent erosion of safety nets in steady state:

• bitrot / heal discovery lag,
• ILM expiry lag (retention and compliance drift),
• replication PENDING/FAILED tails that only re-enter after a slow sweep,
• metrics that describe the last completed walk, not instantaneous truth.

Prefix partitioning and careful ILM slow the collapse. They do not remove the structural cost of one filesystem object per business unit at extreme ingest rates.

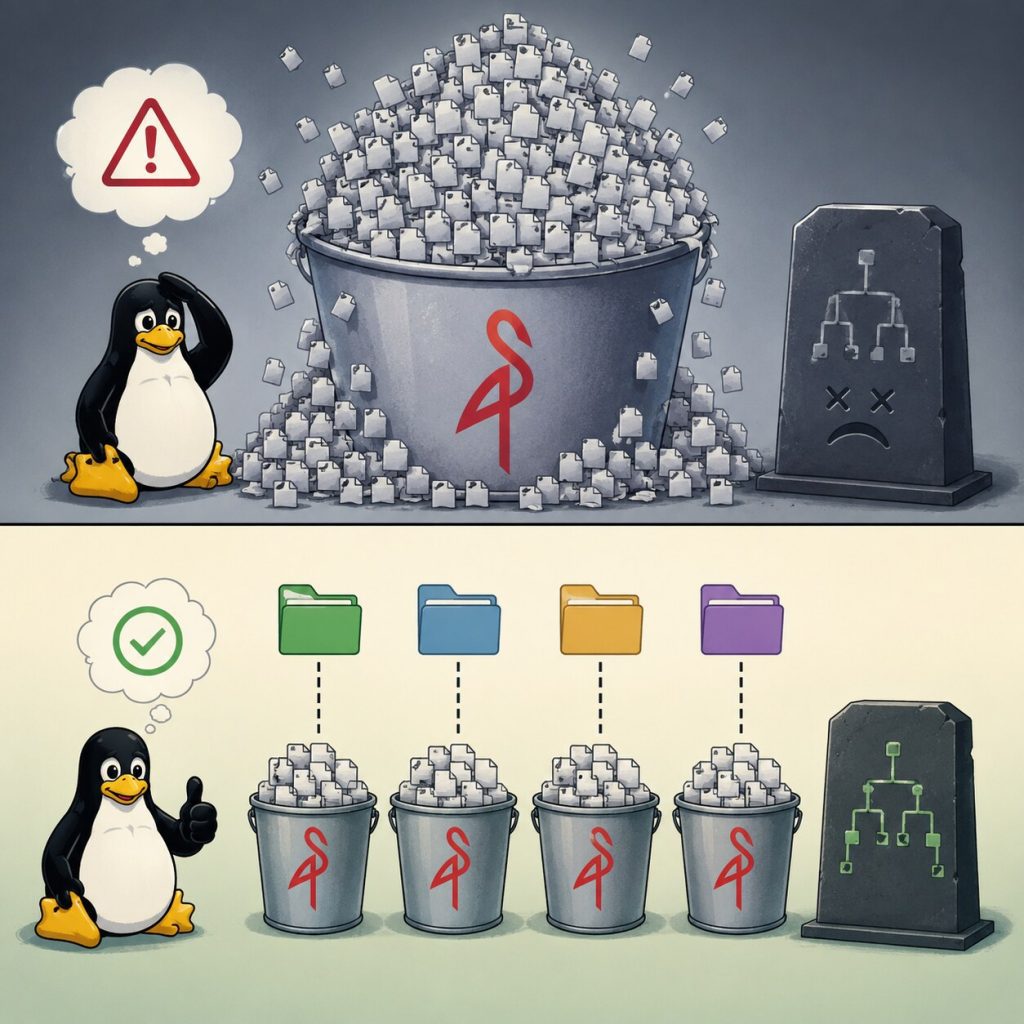

Recommended prefix partitioning for LOSF

Important negative result first: prefix partitioning does not materially reduce total per-object inode use. It adds a few directory inodes. What it does is stop millions of object directories from landing in one physical XFS directory, and it gives clients and MinIO bounded subtrees to list and scan.

Targets I use in practice (heuristics, not product hard limits)

• < ~10 000 objects per leaf directory as a conservative house target; alarm well before tens of thousands inland if latency or scanner lag appears earlier.
• < ~50 000 child prefixes per directory, aligning with MinIO’s scanner excess-subfolder alert region; go deeper instead of wider when you approach it.
• 2-4 useful key depth levels for operational topology. Too shallow builds monsters. Too deep adds path cost and human pain.
• Active objects per bucket large enough to make day-scale full walks painful (order-of-magnitude “tens to low hundreds of millions”, workload-dependent) should force automation and often data-model changes, not only prettier keys.

Capacity mental model:

max_objects ≈ (fanout ^ depth) × objects_per_leaf

A clean 2-level hex split (hh/hh/..., 256×256) with 10k objects per leaf yields hundreds of millions of theoretical keys. That is not permission to stop thinking. Walking tens of thousands of hot leaves with multi-IOPS cold meta work per object still turns one scan cycle into days. Benchmark scanner time and LIST p99 on your hardware class.

Sizing leaves under a hash fan-out

If K unique keys arrive in a time window and you use H hash buckets under that window, expected leaf packing on a given drive is roughly K / (H × S) after set selection (the full key hash already picks the set; the extra hash prefix exists for directory balance inside application-visible trees). Choose H so the expected leaf stays under your target with skew and growth headroom.

Example arithmetic I use in workshops (orders of magnitude only):

• ~1 800 obj/s × 600 s (10-minute tranche) ≈ 1.08M objects if you only time-bucket → far above 10k/leaf.
• Add a two-hex hash (×256) under the tranche → about 4.2k objects per leaf per tranche → under the house rule while peak load is still hot.

Key layouts: good, acceptable, bad

Recommended pattern: query dimensions first, entropy below them.

s3://bucket/{YYYY}/{MM}/{DD}/{HH}/{tranche}/{hash2}/{object-id}

• Time prefixes support ILM, support tickets, and incident scoping.
• tranche (for example 5-10 minute buckets) bounds the blast radius of a hot window.
• hash2 (two hex chars, 256-way) spreads a single tranche so peak obj/s does not pile into one leaf.

A tenant-aware variant is often better when multi-tenancy is real:

s3://bucket/{tenant}/{YYYY}/{MM}/{DD}/{HH}/{hash2}/{object-id}

Acceptable: pure hash fan-out when producers cannot emit useful time keys.

s3://bucket/{hash[0:2]}/{hash[2:4]}/{object-id}

Uniform and simple. Pair it with strict ILM and accept weaker time locality for ops and lifecycle.

Bad (call these out in design reviews):

s3://bucket/{sequential-id} # single leaf explosion
s3://bucket/{YYYY}/{MM}/{DD}/{id} # whole day in one or few leaves at LOSF day-scale
s3://bucket/{customerId}/{id} # hot tenants create hot leaves
s3://bucket/{uuid} # flat after the first char of entropy is ignored

Also bad for LIST IOPS: application code that lists without a tight prefix, recursive gateway listings, or SFTP-style recursive ls translated to unbounded ListObjectsV2. Prefixing only helps LIST when clients issue restrictive prefix requests. A whole-bucket list still walks the whole namespace; S3 prefixes limit returned keys, and delimiters only summarize deeper levels for the caller that asked for them.

What good partitioning changes in experiments

A warp-style load method that keeps paying off:

• LOSF PUT with intentionally flat keys (--noprefix class worst case) and watch p95/p99 die as the leaf grows,
• LIST curves at 10k → 100k → 1M objects flat,
• same counts with partitioned keys: expect large factors of list improvement (often 5×-50× class depending on depth and cache warmness),
• concurrent LIST + PUT on one flat leaf: expect material PUT degradation from directory metadata contention.

Partitioning is not cosmetics for pretty keys. It is how you keep XFS in the regime where readdir is cheap and background walks finish this week.

LIST IOPS cost model (why one hot leaf hurts)

For cold cache and inlined objects, a practical per-object cost on a primary drive is on the order of:

• parent readdir amortization: small,
• lookup/stat of the object directory: ~1 IOPS class,
• open/read xl.meta: ~1 IOPS class,
• total ≈ 2-3 cold IOPS per listed object per primary drive (I use ~2.5 as a rule of thumb).

Rough cluster-order model:

One detail decides the whole model. On a LIST walk MinIO does not read xl.meta from every drive of the set for every object. It picks one primary drive per object by name hash and only consults the quorum when it detects an inconsistency. So the xl.meta reads spread across the drives of the set. Call q the number of drives xl.meta is read from per listed object, q = 1 on the nominal walker path:

per-drive (cold)  ≈ 2.5 × q × objects_in_set / drives_in_set
cluster  (cold)   ≈ 2.5 × q × N_objects
parent readdir    ≈ N_objects / 100   (XFS leaf format)
                  ≈ N_objects / 50    (B+tree, large directories)

Listing 1M objects: five layouts, same object count

Reference cluster for the arithmetic below: 60 NVMe drives in 4 erasure sets of 15, drives rated around 50k IOPS on 4 KiB random reads, all objects inlined, cold cache, walker path (q = 1). The full key hash picks the set, so even a flat prefix still spreads over all four sets.

Layout	Objects	Obj / EC set	Per-drive IOPS (cold)	Cluster IOPS	Wall clock	Why
(a) one leaf, 1k objects	1 000	250	~42	~2.5k	< 50 ms	Trivial, stays warm in cache.
(b) one leaf, 10k objects	10 000	2 500	~420	~25k	~100 ms	At the house target, still comfortable.
(c) 100 leaves x 10k	1 000 000	250k	~42k cumulative	~2.5M	~5 s at 10 concurrent LIST	Good partitioning. Each leaf fits page cache, listings parallelize.
(d) 1 000 leaves x 1k	1 000 000	250k	~42k cumulative	~2.5M	~3 s at 20 concurrent LIST	Best cache behaviour, cost moves to 1 000 S3 round trips.
(e) one leaf, 1M objects	1 000 000	250k per set	~42k	~2.5M	30 s to several minutes	Same IOPS on paper. Serial B+tree readdir over 250k entries, ~500 MB of xl.meta per set evicted from cache, 1 000 sequential list pages on one subtree.

Reading the table:

• (c), (d) and (e) hold the same million objects and burn near-identical aggregate IOPS, yet behave nothing alike. Many small leaves are parallelizable and cache-friendly. One monster leaf serializes readdir, serializes the multi-page S3 list loop, and pins the drives of one set while the rest of the cluster idles.
• Case (e) is the “burned IOPS budget” incident. A single badly placed LIST holds those drives under load for tens of seconds. PUTs landing on the same set see their latency climb and start timing out, MinIO answers 503 SlowDown, the client backs off for its configured window, and the platform looks frozen without a single error in the storage logs.
• On (c) and (d) the bottleneck has already moved off the drives and onto LIST issue rate: network latency times page count. That one you fix client-side with concurrent prefix-scoped listings.
• The scanner walks the same tree. In case (e), scanner plus one user LIST is immediate saturation. The excess-subfolder guardrails do not protect you here: they count subfolders, not the million objects sitting in one leaf.

If you hardened the list quorum, multiply

Regulated platforms often raise the listing quorum for consistency, which pushes q from 1 toward the full set width. On a set of 15 that is a factor of 15 on the xl.meta share of the cost, and xl.meta is what dominates on inlined small objects:

Layout	Per-drive IOPS, q = 15	Cluster IOPS	Wall clock, upper bound
(b) one leaf, 10k objects	~6.3k	~375k	~0.5 to 1 s
(c) 100 leaves x 10k	~630k	~37.5M	~1 to 2 min
(d) 1 000 leaves x 1k	~630k	~37.5M	~45 to 90 s
(e) one leaf, 1M objects	~630k	~37.5M	several minutes to tens of minutes

The arithmetic that matters: at 50k IOPS per drive, ~630k IOPS per drive is a 12 to 13 second floor of pure I/O saturation before you count readdir and serial pagination. Even the well-partitioned layouts (c) and (d), a comfortable few seconds on the walker path, land in the minute range. The window where client PUTs and LIST or scanner traffic fight over the same drives widens by the same factor.

Treat that column as an upper bound and confirm it by measurement. Whether a hardened quorum really forces a read on every drive of the set for every listed object, or only a cheaper metadata comparison, depends on the validation path in your exact version. The real cost sits somewhere between the two tables. Settle it with mc admin trace --call s3.ListObjectsV2 correlated against iostat -xm per drive of the set. If the full factor holds, consistency versus LIST cost becomes a design decision of its own, weighed against prefix depth and set width rather than assumed away.

Useful public checks: mc admin trace filtered on ListObjects*, iostat -xm during the list, controlled samples of directory entry counts on a data path (never blanket-ls a hot prod leaf without limits), and correlation of LIST storms with PUT errors and single-set disk util pegs.

What partitioning cannot save

When daily small-object counts stay in the 10⁷-10⁸/day band for long retention on fixed hardware, prettier keys stop being enough. At that shape the honest options are architectural:

• Stop storing one S3 object per business unit. Batch into archives, parquet, rollup blobs, or a compact journal+sink so MinIO sees larger objects. Keep a hot keyed store elsewhere if you need point reads.
• Revisit set geometry. Smaller erasure sets reduce per-object metadata amplification at the cost of higher storage overhead %. On LOSF, inode/IOPS often dominate raw % capacity, so higher overhead can still be the cheaper option. Pair this with the erasure-efficiency discussion in the companion post on small-file EC inversion.
• Bound upstream fan-out. Cloud-shaped “one request → millions of extracted objects” features assume elastic backends.
• Do not expect compression of already-inlined scraps to fix LOSF. CPU cost is per object; metadata IOPS count does not drop.
• KMS/KES cost is roughly per object, so crypto becomes a larger fraction of PUT latency on LOSF than on multi-MiB objects.

Monitoring checklist

• inodes and bytes on every MinIO data mount and on any notification spool mount (df -h and df -i),
• scanner progress / estimated full-scan time,
• object count growth vs used bytes (mean object size),
• versions per object and delete-marker growth when versioning is on,
• list latency for known heavy prefixes; ratio of list IOPS to put IOPS,
• disk %util / await skew across nodes and EC sets during lists,
• replication pending/failed gauges on multi-site,
• ILM pending expiry / transition backlogs,
• filesystem geometry / maxpct awareness when inode headroom is tight.

Practical design contract I put in front of producers

• Mean object size and peak obj/s are capacity inputs equal to TiB.
• Keys must satisfy the leaf and fan-out targets above under peak day growth for the full retention window.
• All LIST and lifecycle tools must be prefix-scoped. Bulk recursive list is a bug.
• Any API that expands one request into unbounded object creates needs a hard bound and an observable queue.
• Versioning and site replication are multiplicative taxes; clean noncurrent versions and delete markers on purpose.
• If daily LOSF counts make day-scale scans unrealistic, change the data model before buying another rack of the same mistake.

Where this sits relative to the earlier posts

• Stop using MinIO as a NoSQL database – product-fit and the de-facto key-value antipattern.
• MinIO and lots of small files – structural gaps vs databases (no global index, sampling scanner, tiering interactions).
• Erasure coding as 15× replication – storage-efficiency inversion on inlined small objects.
• This post – filesystem substrate: XFS layout, inode capacity, scanner coupling, and the prefix contract that keeps directories operable.

MinIO remains a strong fit for medium-to-large objects with S3 semantics on commodity hardware. LOSF is the envelope boundary. Prefix design is how you stay on the right side of that boundary for as long as the object model is still sane. Past that boundary, fix the model.

If free TiB still looks fine while PUT, LIST, scanner, or ILM already look like a capacity incident, the constraint is usually object count, directory shape, and erasure-set width rather than another shelf of drives. A Data Platform Performance Audit or a focused Platform Sizing review is the faster path than learning this on production traffic. Book a 15-min intro call to see which fits, or take one focused hour with an Expert Call.
